FEATURES
- Kit includes 3/8"-24 X .375" Threaded RAM® Tough-Ball™ that screws into thread adpater of the weBoost antenna, C size medium length socket arm and C size RAM® Track Ball™ to mount to a third party track system or any RAM® Tough-Track™ system
- The adjustability of the ball and socket technology allows the weBoost mount to collapse when not in use, and provide extended reach in tight mounting areas
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
OVERVIEW

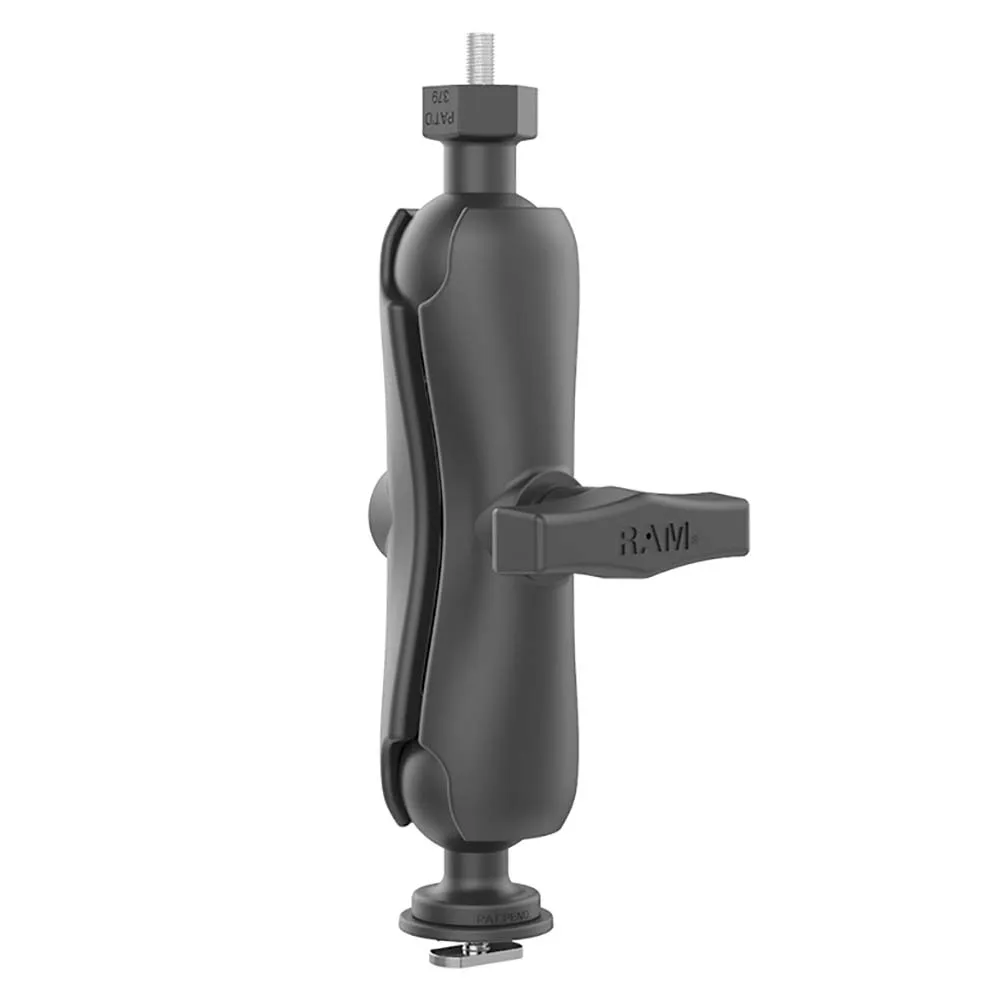

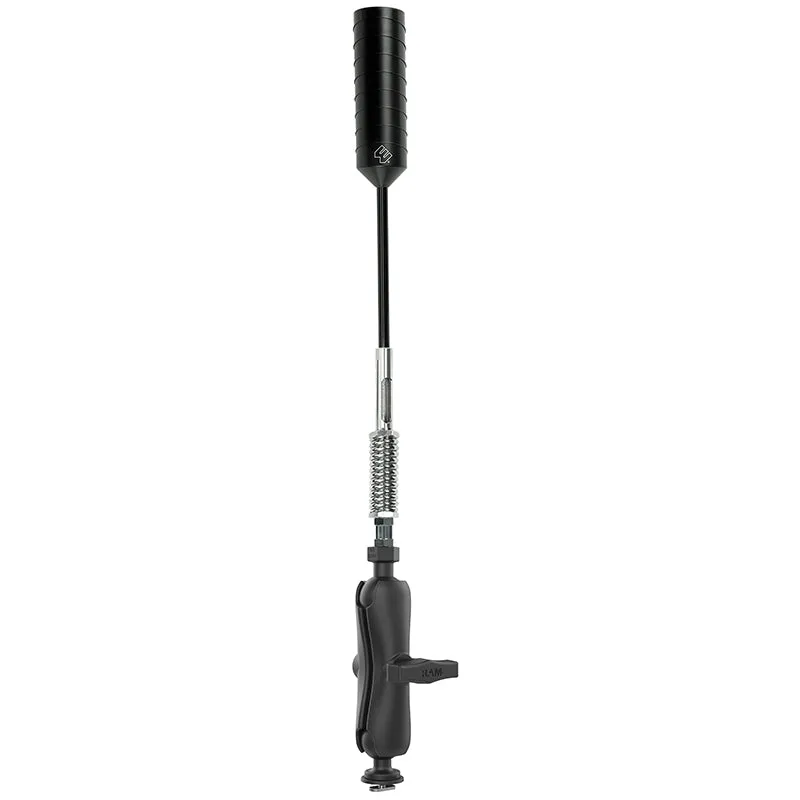

This weBoost mounting kit includes a 3/8"-24 X .375" threaded RAM® Tough-Ball™ that screws directly into the weBoost antenna, a C size medium length socket arm and a C size RAM® Track Ball™ to mount to a third party track system or any RAM® Tough-Track™ system. The adjustability of the RAM® Mounts system allows you to collapse the antenna while not in use, as well as extend the reach of the weBoost antenna if mounted in a tight space. This weBoost antenna mount is compatible with all weBoost vehicle antennas including the Drive Reach OTR, RV and Drive X RV antennas making this the ideal mounting solution for off-road vehicles and semi-trucks.
HARDWARE INCLUDED
(1) Friction Washer
(1) 1/4"-20 x 7/8" T-Bolt
(1) 1/4"-20 x 7/8" T-Bolt
T-BOLT DIMENSIONS
.48" x .95"
THREAD PITCH
3/8"-24 X .375"
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
Heavy-Duty Use: 3 lbs
MATERIALS
Marine-grade aluminum
High strength composite
High strength composite
PACKAGING TYPE
Poly Bag
WEIGHT
1.02 lbs.
COMPATIBILITY
COMPATIBLE VEHICLES
weBoost
- Drive 4G-X OTR
- Drive Reach OTR Fleet
- Drive Sleek OTR
- Drive X OTR Fleet
